A-Fast 11 Wildland / Water Curtian Deluge

The A-FAST-11, DELUGE / Forestry pipe assembly with extension

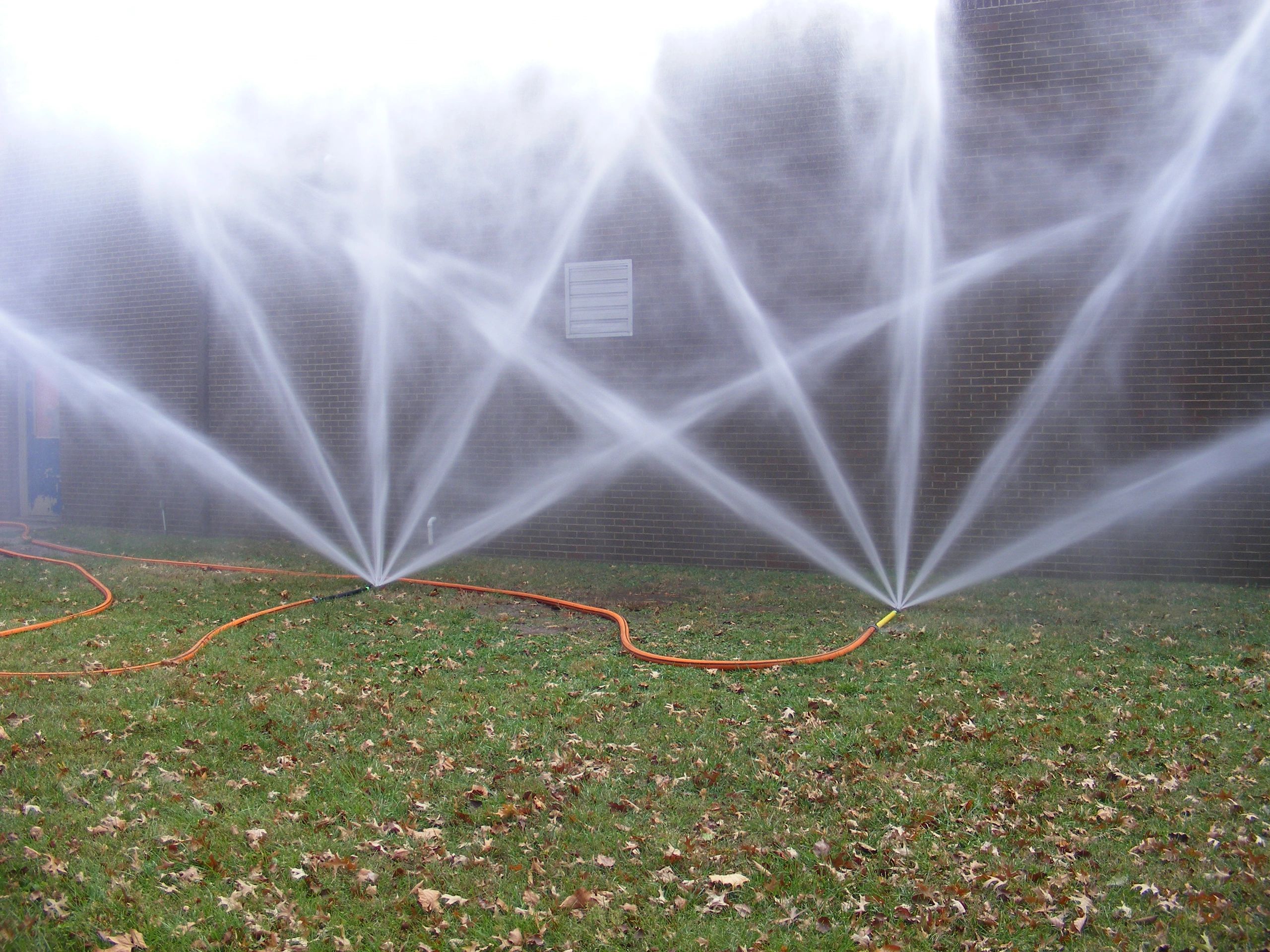

The A-FAST 11 Deluge nozzle is a lightweight easy to assemble nozzle designed for those situations that need exposure protection during a wildfire, or a wide fan deluge spray to inhibit flashover in a strip mall for example. The benefit of the A-FAST 11 is its ability to flow 150 to 200 gallons per minute at regular pump pressures and be left without personnel operating the unit.

The nozzle and tip pipe are attached to an aluminum base plate / skid unit for stability.

The assembly consists of the A-FAST 10 base system, about 36 inches long (yellow reflective tape).  36-inch Extension pipes can be added in any number to increase the distance from the personnel operating the system, but they must be slid along the ground to prevent damage to the pipes.
